HMS Victory Model Blueprints & Construction Plans – LOK No. 47 (1972)
Original vintage HMS Victory ship modelling plans, published in Poland by Liga Obrony Kraju (LOK) in the Plany Modelarskie series as No. 47, Issue 1/1972. This is an original 1972 publication, not a modern reproduction or reprint.

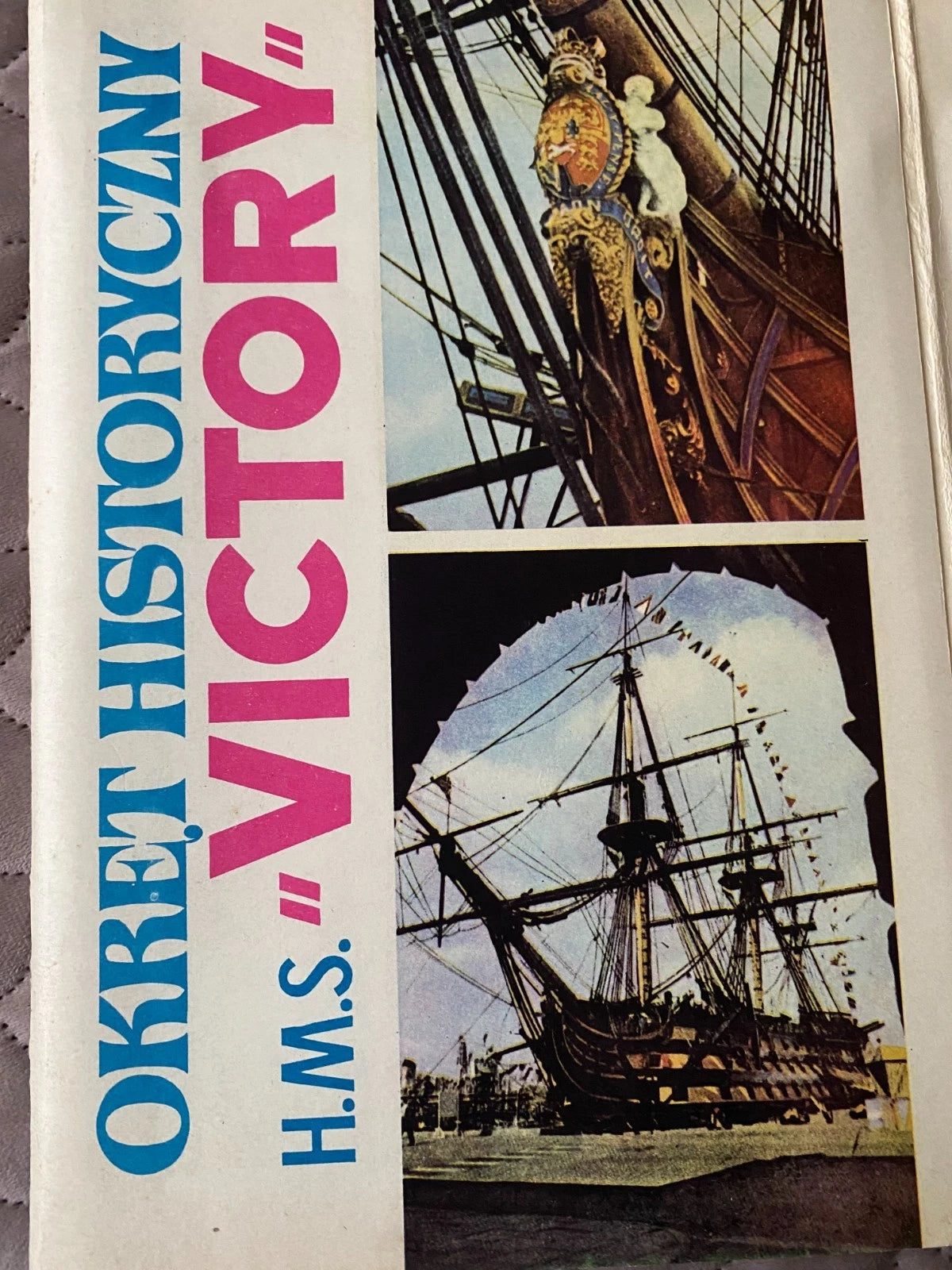

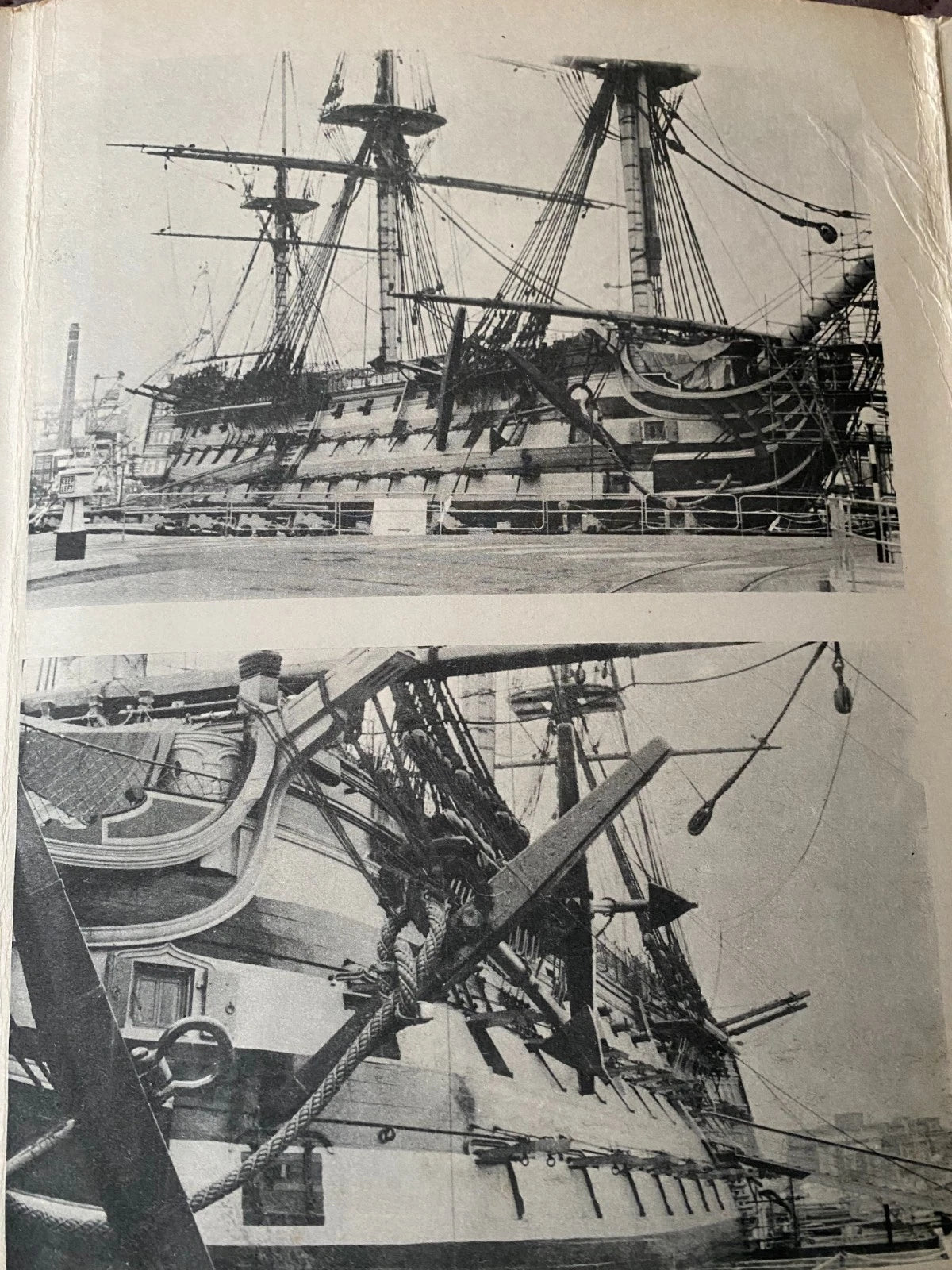

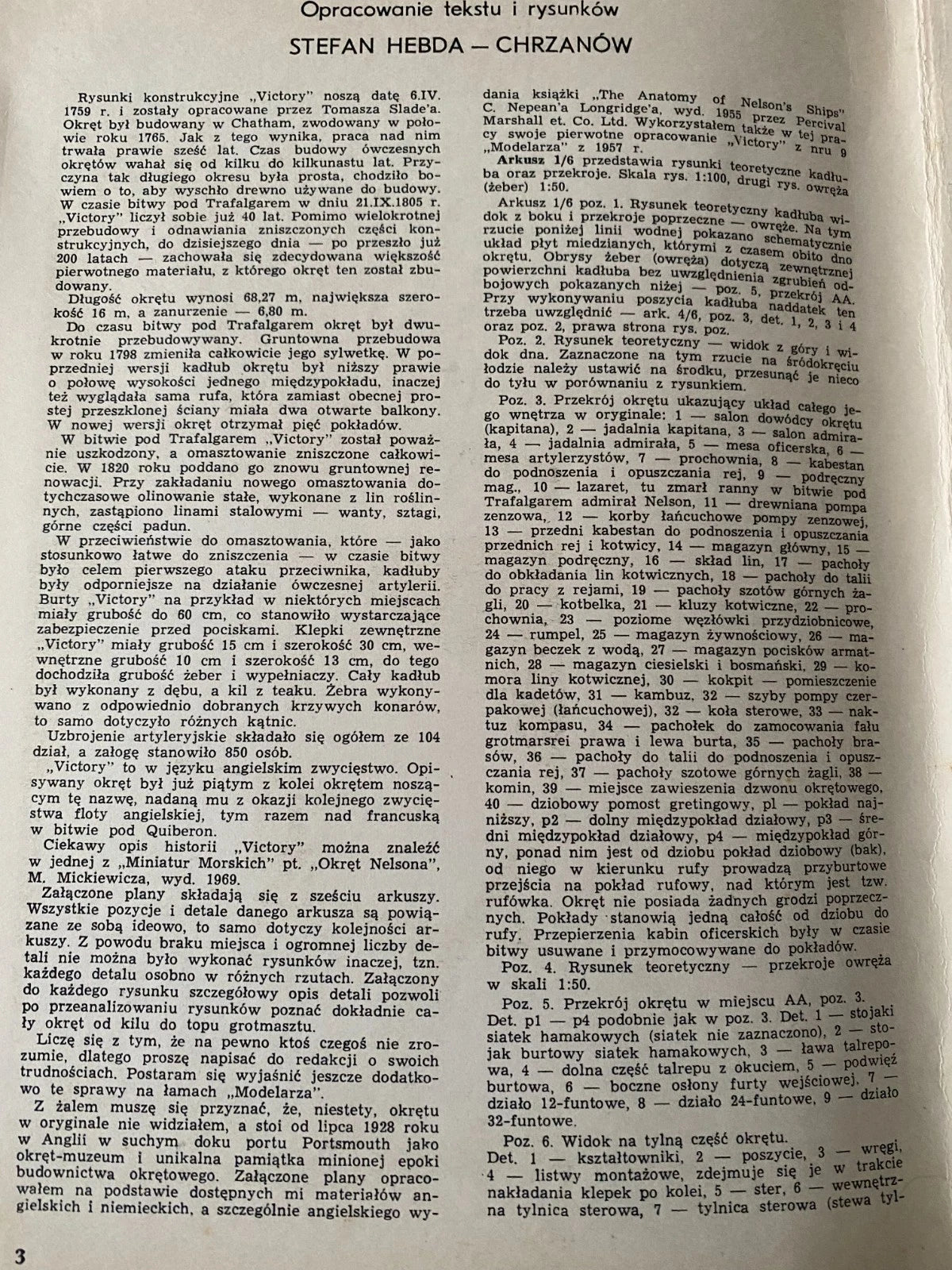

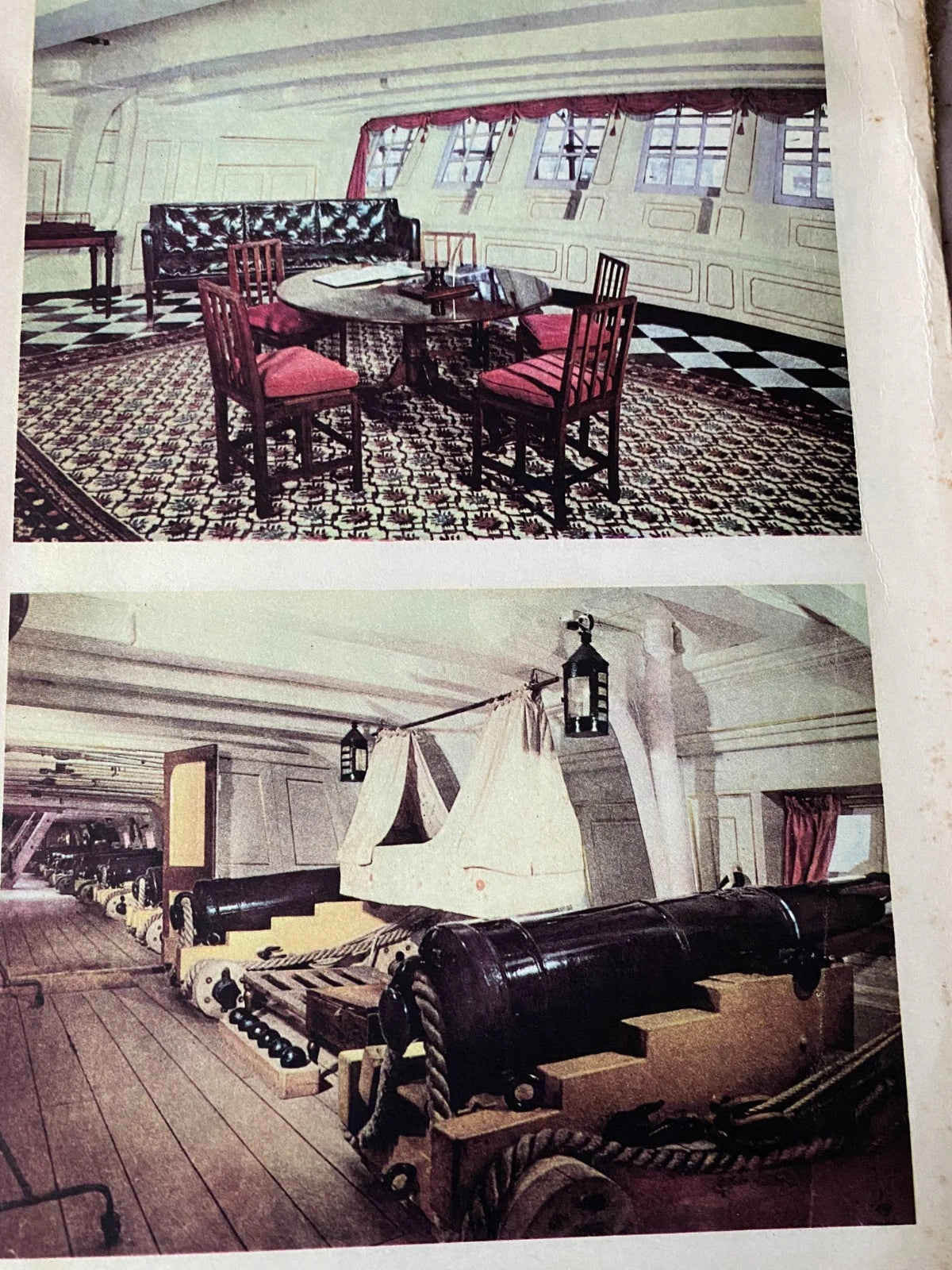

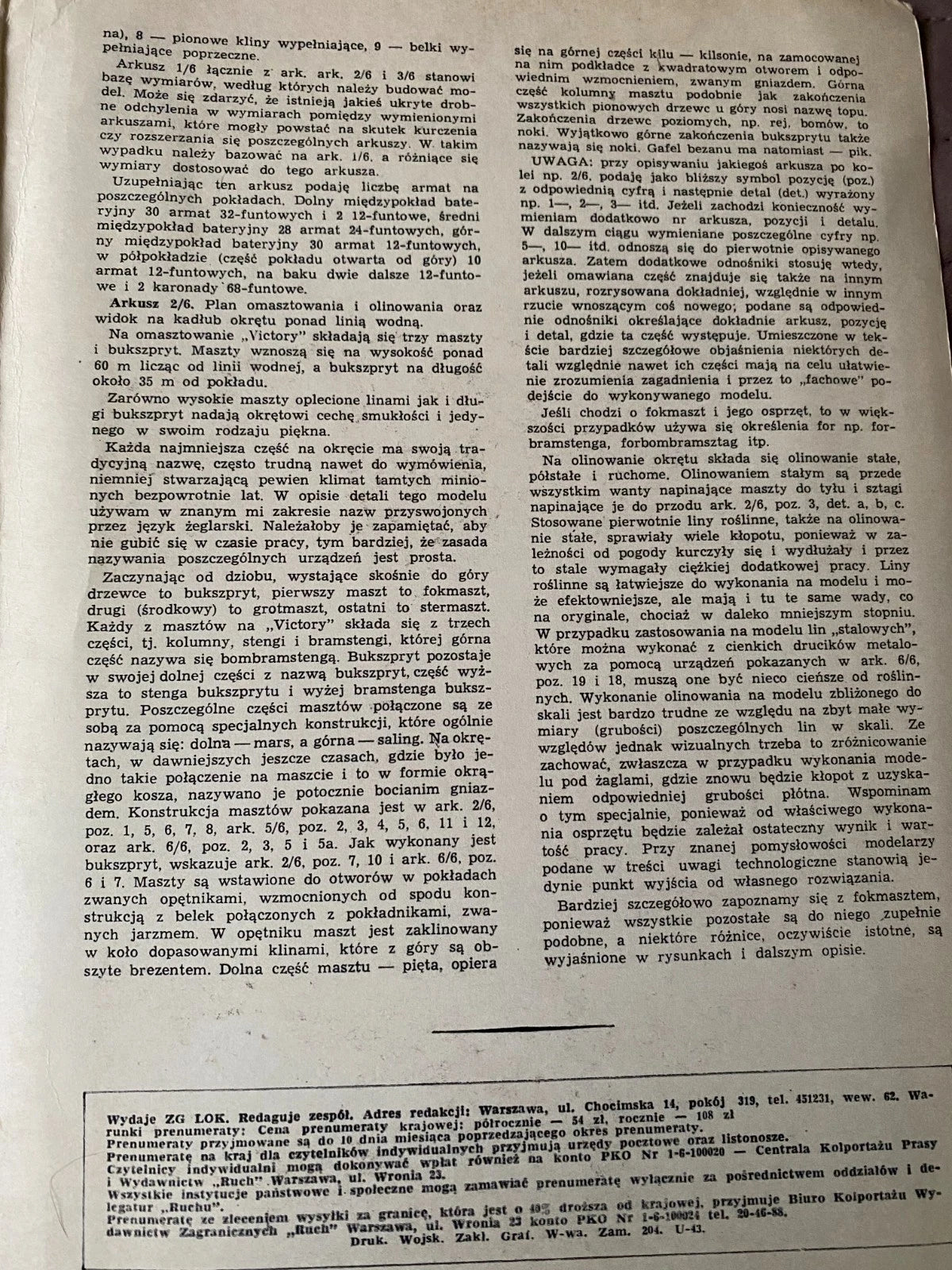

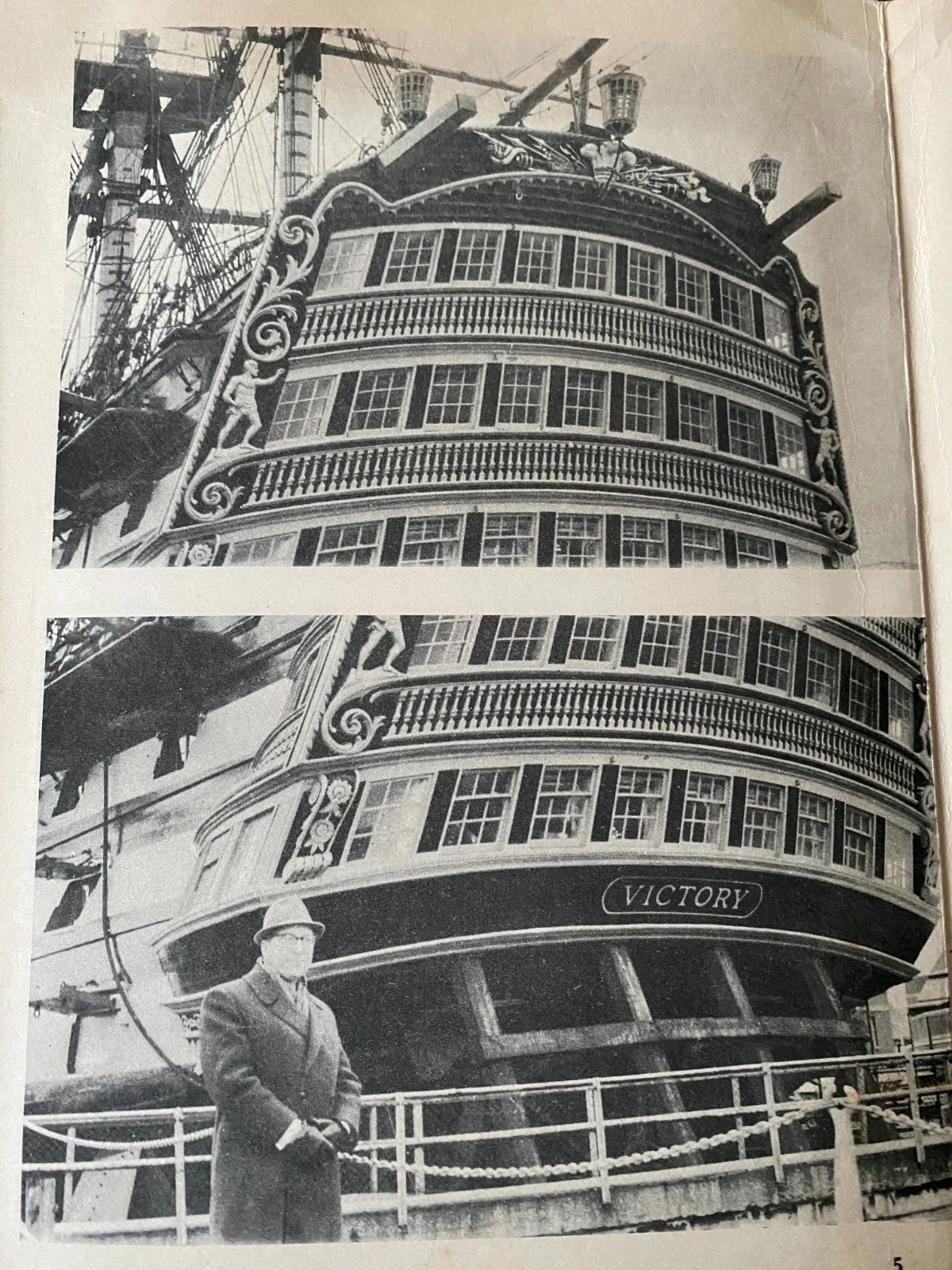

The set contains the complete six large folding A1 plan sheets (1/6–6/6) together with the original illustrated publication containing construction notes, technical descriptions and historical information. Prepared by Stefan Hebda, the drawings document the hull, internal arrangement, decks, bow and stern, masts, yards, rigging, sails, artillery, ship's boats, fittings and many individual construction details.
The documentation uses several scales. Principal theoretical hull drawings are approximately 1:100, while selected sections and construction details are shown at 1:50 or other enlarged detail scales. Please refer to the photographs for the scales printed on individual sheets.
Key Features
- Subject: HMS Victory
- Publisher: Liga Obrony Kraju (LOK), Poland
- Series: Plany Modelarskie
- Issue: No. 47 – 1/1972
- Year: 1972
- Plans and text by Stefan Hebda
- Original vintage publication – not a reproduction
- Complete set of 6 large folding A1 plan sheets
- Detailed hull lines, sections and internal arrangements
- Deck, bow, stern and gallery construction drawings
- Masts, yards, spars, standing and running rigging
- Sail plans and rigging arrangements
- Artillery, anchors, capstans, ship's boats and deck equipment
- Historical and modelling information included
Condition
Original vintage item from 1972. The publication and plans are in used condition and show age-related wear. The folding sheets retain their original creases and may show marks, discolouration, edge wear and small tears consistent with age and storage. The drawings remain detailed and clearly readable, and all six sheets are present. Please study the photographs carefully, as they show the actual item for sale and form an important part of the condition description.
Summary
A comprehensive original 1972 set of HMS Victory model blueprints and construction plans from the renowned Polish Plany Modelarskie series. With six large A1 sheets covering hull construction, decks, rigging, sails, armament and fittings, this vintage LOK publication is an excellent reference for experienced wooden ship modellers, scratch builders, maritime historians and collectors.
